Step Motorlar

20HS NEMA8 2Phase Stepper motor 1.8°

20HS NEMA8 2Phase Stepper motor 1.8°

20HS NEMA8 2Phase Stepper motor 1.8°

Model: NEMA8 Stepper motor-JK20HS(1.8 degree)

Genaral Specification:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 20N
Max. axial force ---------------------------- 2N

Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Motor

Weight

( °)

(L)mm

A

Ω

mH

g.cm

No.

Kg

JK20HS30-0604

1.8

30

0.2

18

3.2

180

4

0.06

JK20HS33-0604

1.8

33

0.6

6.5

1.7

200

4

0.07

JK20HS38-0604

1.8

38

0.6

10

5.5

300

4

0.08

JK20HS42-0804

1.8

42

0.8

5.4

1.5

400

4

0.09

Dimensions:
*Note: We can also manufacture products according to customer's requirements.

(Unit=mm)

Wiring Diagram:

Matched Drivers:

2 Phase stepper motor driver Model: JK0220

28HS NEMA11 2phase Stepper Motor 1.8°

28HS NEMA11 2phase Stepper Motor 1.8°

28HS NEMA11 2phase Stepper Motor 1.8°

Model: NEMA11 Stepper motor-JK28HS(1.8 degree)

Genaral Specification:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 28N
Max. axial force ---------------------------- 10N

Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

Lead wires

Rotor Inertia

Motor

Weight

( °)

(L)mm

A

Ω

mH

g.cm

No.

g.cm

Kg

JK28HS32-0956

1.8

32

0.95

2.8

0.8

430

6

9

0.11

JK28HS32-0674

1.8

32

0.67

5.6

3.4

600

4

9

0.11

JK28HS45-0956

1.8

45

0.95

3.4

1.2

750

6

12

0.14

JK28HS45-0674

1.8

45

0.67

6.8

4.9

950

4

12

0.14

JK28HS51-0956

1.8

51

0.95

4.6

1.8

900

6

18

0.2

JK28HS51-0674

1.8

51

0.67

9.2

7.2

1200

4

18

0.2

*Note: We can also manufacture products according to customer's requirements.

Dimensions:

(Unit=mm)

Wiring Diagram:

Matched Drivers:

2 Phase stepper motor driver Model: JK0220

35HM NEMA14 2phase Stepper Motor 0.9°

35HM NEMA14 2phase Stepper Motor 0.9°

35HM NEMA14 2phase Stepper Motor 0.9°

Genaral Specification:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 28N
Max. axial force ---------------------------- 10N

Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

( °)

(L)mm

A

Ω

mH

g.cm

No.

g.cm

g.cm

Kg

JK35HM27-0504

0.9

27

0.5

10

14

1000

4

80

6

0.13

JK35HM34-1004

0.9

34

1

2

3

1200

4

110

9

0.17

JK35HM40-1004

0.9

40

1

2

4

1500

4

140

12

0.22

*Note: We can also manufacture products according to customer's requirements.

Dimensions:

(Unit=mm)

Wiring Diagram:

Matched Drivers:

2 Phase stepper motor driver Model: JK0220 ,JK0230

35HS NEMA14 2phase stepper motor 1.8°

35HS NEMA14 2phase stepper motor 1.8°

35HS NEMA14 2phase stepper motor 1.8°

Model: NEMA14 Stepper motor-JK35HS(1.8 degree)

Genaral Specification:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 28N
Max. axial force ---------------------------- 10N

Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

( °)

(L)mm

A

Ω

mH

g.cm

No.

g.cm

g.cm

Kg

JK35HS28-0504

1.8

28

0.5

20

14

1000

4

80

11

0.13

JK35HS34-1004

1.8

34

1

2.7

4.3

1400

4

100

13

0.17

JK35HS42-1004

1.8

42

1

3.8

3.5

2000

4

125

23

0.22

*Note: We can also manufacture products according to customer's requirements.

Dimensions:

(Unit=mm)

Wiring Diagram:

Matched Drivers:

2 Phase stepper motor driver Model: JK0220

39HS NEMA16 2phase Stepper Motor 1.8°

39HS NEMA16 2phase Stepper Motor 1.8°

39HS NEMA16 2phase Stepper Motor 1.8°

Model: NEMA16 Stepper motor-JK39HS(1.8 degree)

Genaral Specification:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 28N
Max. axial force ---------------------------- 10N

Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

Lead

wires

Detent Torque

Rotor Inertia

Motor

Weight

( °)

(L)mm

A

Ω

mH

g.cm

No.

g.cm

g.cm

Kg

JK39HS20-0404

1.8

20

0.4

6.6

7.5

650

4

50

11

0.12

JK39HS20-0506

1.8

20

0.5

13

7.5

800

6

50

11

0.12

JK39HS34-0404

1.8

34

0.4

30

32

2100

4

120

20

0.18

JK39HS34-0306

1.8

34

0.3

40

20

1300

6

120

20

0.18

JK39HS38-0504

1.8

38

0.5

24

45

2900

4

180

24

0.2

JK39HS38-0806

1.8

38

0.8

7.5

6

2000

6

180

24

0.2

JK39HS44-0304

1.8

44

0.3

40

100

2800

4

250

40

0.25



*Note: We can also manufacture products according to customer's requirements.

Dimensions:

(Unit=mm)

Wiring Diagram:

42HM NEMA17 2phase Stepper Motor 0.9°

42HM NEMA17 2phase Stepper Motor 0.9°

42HM NEMA17 2phase Stepper Motor 0.9°

Model: NEMA17 Stepper motor-JK42HM (0.9 degree)

Genaral Specification:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 28N
Max. axial force ---------------------------- 10N

Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

Lead

wires

Detent Torque

Rotor Inertia

Motor

weight

( °)

(L)mm

A

Ω

mH

kg.cm

No.

g.cm

g.cm

Kg

JK42HM34-0956

0.9

34

0.95

4.2

4

1.58

6

200

35

0.22

JK42HM34-0606

0.9

34

0.6

10

9.5

1.58

6

200

35

0.22

JK42HM34-0316

0.9

34

0.31

38.5

33

1.58

6

200

35

0.22

JK42HM34-1334

0.9

34

1.33

2.1

4.2

2.2

4

200

35

0.22

JK42HM40-1206

0.9

40

1.2

3.3

3.4

2.59

6

220

54

0.28

JK42HM40-0806

0.9

40

0.8

7.5

6.7

2.59

6

220

54

0.28

JK42HM40-0406

0.9

40

0.4

30

30

2.59

6

220

54

0.28

JK42HM40-1684

0.9

40

1.68

1.65

3.2

3.3

4

220

54

0.28

JK42HM48-1206

0.9

48

1.2

3.3

4

3.17

6

250

68

0.35

JK42HM48-0806

0.9

48

0.8

7.5

10

3.17

6

250

68

0.35

JK42HM48-0406

0.9

48

0.4

30

38

3.17

6

250

68

0.35

JK42HM48-1684

0.9

48

1.68

1.65

4.1

4.4

4

250

68

0.35

*Note: We can also manufacture products according to customer's requirements.

Dimensions:

(Unit=mm)

Wiring Diagram:

Matched Drivers:

2 Phase stepper motor driver Model: JK0220 ,JK0230

42HS NEMA17 2Phase Stepper Motor 1.8°

42HS NEMA17 2Phase Stepper Motor 1.8°

42HS NEMA17 2Phase Stepper Motor 1.8°

Model: NEMA17 Stepper motor-JK42HS (1.8 degree)

Genaral Specification:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 28N
Max. axial force ---------------------------- 10N

Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

Lead

wires

Detent Torque

Rotor Inertia

Motor Weight

( °)

(L)mm

A

Ω

mH

kg.cm

No.

g.cm

g.cm

Kg

JK42HS34-0956

1.8

34

0.95

4.2

2.5

1.6

6

120

34

0.22

JK42HS34-0406

1.8

34

0.4

24

15

1.6

6

120

34

0.22

JK42HS34-0316

1.8

34

0.31

38.5

21

1.6

6

120

34

0.22

JK42HS34-1334

1.8

34

1.33

2.1

2.5

2.2

4

120

34

0.22

JK42HS40-1206

1.8

40

1.2

3.3

3.2

2.6

6

150

54

0.28

JK42HS40-0806

1.8

40

0.8

7.5

6.7

2.6

6

150

54

0.28

JK42HS40-0406

1.8

40

0.4

30

30

2.6

6

150

54

0.28

JK42HS40-1684

1.8

40

1.68

1.65

3.2

3.6

4

150

54

0.28

JK42HS48-1206

1.8

48

1.2

3.3

2.8

3.17

6

260

68

0.35

JK42HS48-0806

1.8

48

0.8

7.5

6.3

3.17

6

260

68

0.35

JK42HS48-0406

1.8

48

0.4

30

25

3.17

6

260

68

0.35

JK42HS48-1684

1.8

48

1.68

1.65

2.8

4.4

4

260

68

0.35

JK42HS60-1206

1.8

60

1.2

6

7

6.5

6

280

102

0.5

*Note: We can also manufacture products according to customer's requirements.

Dimensions:

(Unit=mm)

Wiring Diagram:

Matched Drivers:

2 Phase stepper motor driver Model: JK0220 ,JK0230

57HM NEMA23 2Phase Stepper Motor 0.9°

57HM NEMA23 2Phase Stepper Motor 0.9°

57HM NEMA23 2Phase Stepper Motor 0.9°

Model: NEMA23 Stepper motor-JK57HM (0.9 degree)

Genaral Specification:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 75N
Max. axial force ---------------------------- 15N

Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

Lead

wires

Detent Torque

Rotor Inertia

Motor

Weight

( °)

(L)mm

A

Ω

mH

kg.cm

No.

g.cm

g.cm

Kg

JK57HM41-1006

0.9

41

1

5.7

8

3.9

6

210

120

0.45

JK57HM41-2006

0.9

41

2

1.4

2.2

3.9

6

210

120

0.45

JK57HM41-3006

0.9

41

3

0.63

1.0

3.9

6

210

120

0.45

JK57HM41-2804

0.9

41

2.8

0.7

2.2

5.5

4

210

120

0.45

JK57HM56-1006

0.9

56

1

7.4

17.5

9

6

400

300

0.80

JK57HM56-2006

0.9

56

2

1.8

4.5

9

6

400

300

0.80

JK57HM56-3006

0.9

56

3

0.75

1.9

9

6

400

300

0.80

JK57HM56-2804

0.9

56

2.8

0.9

4.5

12

4

400

300

0.80

JK57HM76-1006

0.9

76

1

8.6

23

13.5

6

680

480

1.00

JK57HM76-2006

0.9

76

2

2.25

5.6

13.5

6

680

480

1.00

JK57HM76-3006

0.9

76

3

1

2.6

13.5

6

680

480

1.00

JK57HM76-2804

0.9

76

2.8

1.13

5.6

18

4

680

480

1.00

*Note: We can also manufacture products according to customer's requirements.

Dimensions:

(Unit=mm)

Wiring Diagram:

Matched Drivers:

2 Phase stepper motor driver Model: JK0230, JK1545

57HS NEMA23 2Phase Stepper Motor 1.8°

57HS NEMA23 2Phase Stepper Motor 1.8°

57HS NEMA23 2Phase Stepper Motor 1.8°

Model: NEMA23 Stepper motor-JK57HS (1.8 degree)

Genaral Specification:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 75N
Max. axial force ---------------------------- 15N

Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

Lead wires

Detent Torque

Rotor Inertia

Motor

Weight

( °)

(L)mm

A

Ω

mH

N.m

No.

g.cm

g.cm

Kg

JK57HS41-1006

1.8

41

1

5.2

5.5

0.39

6

250

150

0.47

JK57HS41-2006

1.8

41

2

1.4

1.4

0.39

6

250

150

0.47

JK57HS41-3006

1.8

41

3

0.63

0.6

0.39

6

250

150

0.47

JK57HS41-2804

1.8

41

2.8

0.7

1.4

0.55

4

250

150

0.47

JK57HS51-1006

1.8

51

1

6.6

8.2

0.72

6

300

230

0.59

JK57HS51-2006

1.8

51

2

1.65

2.2

0.72

6

300

230

0.59

JK57HS51-3006

1.8

51

3

0.74

0.9

0.72

6

300

230

0.59

JK57HS51-2804

1.8

51

2.8

0.83

2.2

1.01

4

350

280

0.68

JK57HS56-1006

1.8

56

1

7.4

10

0.9

6

350

280

0.68

JK57HS56-2006

1.8

56

2

1.8

2.5

0.9

6

350

280

0.68

JK57HS56-3006

1.8

56

3

0.75

1.1

0.9

6

350

280

0.68

JK57HS56-2804

1.8

56

2.8

0.9

2.5

1.26

4

350

280

0.68

JK57HS76-1006

1.8

76

1

8.6

14

1.35

6

600

440

1.1

JK57HS76-2006

1.8

76

2

2.25

3.6

1.35

6

600

440

1.1

JK57HS76-3006

1.8

76

3

1

1.6

1.35

6

600

440

1.1

JK57HS76-2804

1.8

76

2.8

1.13

3.6

1.89

4

600

440

1.1

JK57HS82-3004

1.8

82

3.0

1.2

4

2.2

4

1000

600

1.2

JK57HS82-5004

1.8

82

5

0.6

1.5

2.2

4

1000

600

1.2

JK57HS112-3004

1.8

112

3.0

1.6

6.8

2.8

4

1200

800

1.4

JK57HS112-4204

1.8

112

4.2

0.9

3.8

2.8

4

1200

800

1.4

*Note: We can also manufacture products according to customer's requirements.

Dimensions:

(Unit=mm)

Wiring Diagram:

Matched Drivers:

2 Phase stepper motor driver Model: JK0230, JK1545

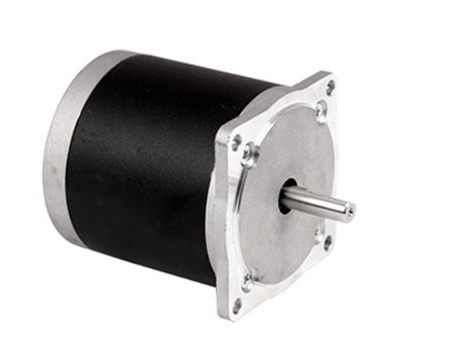

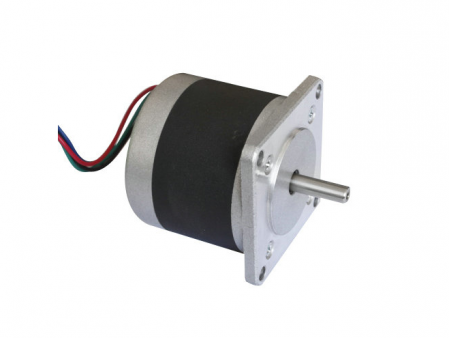

57HY NEMA23 2Phase Stepper Motor Round

57HY NEMA23 2Phase Stepper Motor Round

57HY NEMA23 2Phase Stepper Motor Round

Model: NEMA23 Stepper motor-JK57HY (1.8degree)-Round

Genaral Specification:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 75N
Max. axial force ---------------------------- 15N

Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

Lead wires

Detent Torque

Rotor Inertia

Motor

Weight

( °)

(L)mm

A

Ω

mH

kg.cm

No.

g.cm

g.cm

Kg

JK57HY41-1106

1.8

41

1.1

3.6

3.6

2.88

6

180

57

0.50

JK57HY41-0406

1.8

41

0.4

30

30

2.88

6

180

57

0.50

JK57HY41-1564

1.8

41

1.56

1.8

3.6

4

4

180

57

0.50

JK57HY51-0856

1.8

51

0.85

7.1

9

4.97

6

350

110

0.65

JK57HY51-0426

1.8

51

0.42

29

36

4.97

6

350

110

0.65

JK57HY51-2804

1.8

51

2.8

0.85

2.1

6.9

4

350

110

0.65

JK57HY56-1206

1.8

56

1.2

5

8

6

6

420

135

0.80

JK57HY56-0606

1.8

56

0.6

20

32

6

6

420

135

0.80

JK57HY56-2554

1.8

56

2.55

1.1

3.6

8.4

4

420

135

0.80

JK57HY76-1506

1.8

76

1.5

3.6

6

9

6

720

200

1.00

JK57HY76-0686

1.8

76

0.68

17.7

30

9

6

720

200

1.00

JK57HY76-3304

1.8

76

3.3

0.85

3

12.5

4

720

200

1.00

*Note: We can also manufacture products according to customer's requirements.

Dimensions:

(Unit=mm)

Wiring Diagram:

Matched Drivers:

2 Phase stepper motor driver Model: JK0230, JK1545

60HS NEMA24 2Phase Stepper Motor 1.8°

60HS NEMA24 2Phase Stepper Motor 1.8°

60HS NEMA24 2Phase Stepper Motor 1.8°

Model: NEMA24 Stepper motor-JK60 HS (1.8 degree)

Genaral Specification:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play -----------------
----------------- 0.08mm MAX. (450g Load)

Max. radial force --------------------------- 75N
Max. axial force ---------------------------- 15N

Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

Lead wires

Detent Torque

Rotor Inertia

Motor

Weight

( °)

(L)mm

A

Ω

mH

N.m

No.

g.cm

g.cm

Kg

JK60HS56-2008

1.8

56

2

1.8

3.6

1.17

8

700

300

0.77

1.8

56

2.8

0.9

3.6

1.65

1.8

56

1.4

3.6

14.4

1.65

JK60HS67-2008

1.8

67

2

2.4

4.6

1.5

8

900

570

1.2

1.8

67

2.8

1.2

4.6

2.1

1.8

67

1.4

4.8

18.4

2.1

JK60HS88-3008

1.8

88

3.0

1.3

3.2

2.2

8

1000

840

1.4

1.8

88

4.2

0.65

3.2

3.1

1.8

88

2.1

2.6

12.8

3.1

JK60HS88-4004

1.8

88

4.0

0.65

2.4

3.0

4

1000

840

1.4

JK60HS100-3008

1.8

100

3.0

1.4

3.0

2.8

8

1200

950

1.6

1.8

100

4.2

0.7

3.0

4.0

1.8

100

2.1

2.8

12

4.0

JK60HS100-4004F

1.8

100

4.0

0.7

3.0

4.0

4

1200

950

1.60


*Note: We can also manufacture products according to customer's requirements.

Dimensions:

(Unit=mm)

Wiring Diagram:

Matched Drivers:

2 Phase stepper motor driver Model: JKD5056

86HS NEMA34 2Phase Stepper Motor 1.8°

86HS NEMA34 2Phase Stepper Motor 1.8°

86HS NEMA34 2Phase Stepper Motor 1.8°

Model: NEMA34 Stepper motor-JK86HS (1.8degree)

Genaral Specification:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 220N
Max. axial force ---------------------------- 60N

Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

Lead

wires

Detent Torque

Rotor Inertia

Motor

Weight

( °)

(L)mm

A

Ω

mH

N.m

No.

Kg.cm

g.cm

Kg

JK86H66-5904

1.8

66

5.9

0.28

1.7

3.4

4

0.8

1000

1.7

JK86H66-2808

1.8

66

2.8

1.4

3.9

3.4

8

0.8

1000

1.7

JK86H78-5504

1.8

78

5.5

0.46

4

4.6

4

1.2

1400

2.3

JK86H78-4208

1.8

78

4.24

0.75

3.4

4.6

8

1.2

1400

2.3

JK86H97-4008

1.8

97

4

0.98

4.1

6.8

8

1.6

1900

3

JK86H97-5008

1.8

97

5

0.65

2.4

6.8

8

1.6

1900

3

JK86H97-2708

1.8

97

2.7

1.9

8.6

6.8

8

1.6

1900

3

JK86H115-6004

1.8

115

6

0.6

6.5

8.7

4

2.4

2700

3.8

JK86H115-4208

1.8

115

4.2

0.9

6

8.7

8

2.4

2700

3.8

JK86H126-4008

1.8

126

4

1.3

5.8

9.3

8

3.0

3200

4.5

JK86H126-5008

1.8

126

5

0.85

3.4

9.3

8

3.0

3200

4.5

JK86H126-2708

1.8

126

2.7

2.5

12.5

9.3

8

3.0

3200

4.5

JK86H155-6204

1.8

153

6.2

0.75

9

12

4

3.6

4000

5.4

JK86H155-4208

1.8

153

4.2

1.25

8

12

8

3.6

4000

5.4

*Note: We can also manufacture products according to customer's requirements.

Dimensions:

(Unit=mm)

Wiring Diagram:

Matched Drivers:

2 Phase stepper motor driver Model: JK2060AC, JKD2060AC (Digital)

86HY NEMA34 2Phase stepper motor Round

86HY NEMA34 2Phase stepper motor Round

86HY NEMA34 2Phase stepper motor Round

Model: NEMA34 Stepper motor-JK86HY (1.8degree) Round

Genaral Specification:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 220N
Max. axial force ---------------------------- 60N

Electrical Specification:

Model No.

Step Angle

Motor Lenght

Current

/Phase

Phase /Resistance

Phase /Inductance

Holding Torque

Lead Wire

Detent Torque

Rotor Inertia

Motor

Weight

( °)

(L)mm

A

Ω

mH

N.m

No.

Kg.cm

g.cm

Kg

JK86HY62-5904

1.8

62

5.9

0.23

1.5

1.8

4

0.8

560

1.5

JK86HY94-4006

1.8

94

4.0

0.75

4.5

2.6

6

2.4

1100

2.6

JK86HY94-5604

1.8

94

5.6

0.38

3.9

3.5

4

2.4

1100

2.6

JK86HY134-6706

1.8

134

6.7

0.45

2

3.6

6

3.6

1800

3.6

JK86HY134-5604

1.8

134

5.6

0.63

6.6

5.0

4

3.6

1800

3.6

*Note: We can also manufacture products according to customer's requirements.

Dimensions:

(Unit=mm)

Wiring Diagram:

Matched Drivers:

2 Phase stepper motor driver Model: JKD7208S (DC), JKD2060AC(AC)

110HS NEMA42 2Phase Stepper Motor 1.8°

110HS NEMA42 2Phase Stepper Motor 1.8°

110HS NEMA42 2Phase Stepper Motor 1.8°

Model: NEMA42 Stepper motor-JK110HS (1.8degree)

Genaral Specification:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength -------------------------
1800VAC for 1S 5mA
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 220N
Max. axial force ---------------------------- 60N

Electrical Specification:

Model

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

Lead

wires

Detent Torque

Rotor Inertia

Motor

Weight

( °)

(L)mm

A

Ω

mH

N.m

No.

kg.cm

g.cm

Kg

JK110HS99-5504

1.8

99

5.5

0.9

12

11.2

4

3

5500

5

JK110HS150-6504

1.8

150

6.5

0.8

15

21

4

5.9

10900

8.4

JK110HS201-8004

1.8

201

8

0.67

12

28

4

7.5

16200

11.7

*Note: We can also manufacture products according to customer's requirements.

Dimensions:

(Unit=mm)

Wiring Diagram:

Matched Drivers:

2 Phase stepper motor driver Model: JK2M2208

130HS NEMA52 2Phase Stepper Motor1.8°

130HS NEMA52 2Phase Stepper Motor1.8°

130HS NEMA52 2Phase Stepper Motor1.8°

Model: NEMA52 Stepper motor-JK130HS (1.8degree)

Genaral Specification:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength -------------------------
1800VAC for 1S 5mA
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 220N
Max. axial force ---------------------------- 60N

Electrical Specification:

Model No.

Operating Voltage

Rated Current

Resistance

Inductance

Holding Torque

Noload Frequency

Starting Frequency

Weight

Length

VDC

A

Ω

mH

N.m

No.

g.cm

kg

mm

JK130HS173-6004

80~325

6

0.75

12.6

25

25000

2300

13.3

173

JK130HS229-6004

80~325

6

0.83

13.2

30

25000

2300

18

229

JK130HS257-7004

80~325

7

0.73

11.7

40

23000

2200

19

257

JK130HS285-7004

80~325

7

0.66

10

50

23000

2200

22.5

285

Above only for representative products, products of special request can be made according to the customer request.

Dimensions:

(Unit=mm)

Wiring Diagram:

Matched Drivers:

2 Phase stepper motor driver Model: JK2M2208

NEMA23 3 Phase Stepper motor 1.2°

NEMA23 3 Phase Stepper motor 1.2°

NEMA23 3 Phase Stepper motor 1.2°

Model: NEMA23 Stepper motor-JK57H3P (1.2 degree)

Genaral Specification:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 75N
Max. axial force ---------------------------- 15N

Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

Detent Torque

Rotor Inertia

Weight

( °)

(L)mm

A

Ω

mH

kg.cm

g.cm

g.cm

Kg

JK57H3P42-5206

1.2

42

5.2

1.3

1.4

4.5

210

110

0.45

JK57H3P56-5606

1.2

56

5.6

0.7

0.7

9

400

300

0.75

JK57H3P79-5206

1.2

79

5.2

0.9

1.5

15

680

480

1.1

Note: We can also manufacture products according to customer's requirements.

Dimensions:

(Unit=mm)

Wiring Diagram:

Matched Drivers:

3 Phase stepper motor driver Model: JK3DM683

NEMA34 3 Phase Stepper motor 1.2°

NEMA34 3 Phase Stepper motor 1.2°

NEMA34 3 Phase Stepper motor 1.2°

Model: NEMA34 Stepper motor-JK86H3P (1.2 degree)

Genaral Specification:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 75N
Max. axial force ---------------------------- 15N

Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

Rotor Inertia

Mass

( °)

(L)mm

A

Ω

mH

N.m

g.cm

Kg

JK86H3P65-3006

1.2

65

3.0

0.5

1.6

2

1100

1.65

JK86H3P98-5206

1.2

98

5.2

0.6

3

4.5

2320

2.70

JK86H3P113-5206

1.2

113

5.2

0.9

5.9

6

3100

3.50

JK86H3P126-6006

1.2

126

6.0

0.75

2.4

6

3300

3.80

JK86H3P150-5006

1.2

150

5.0

1.5

3

7

4650

5.10

Note: We can also manufacture products according to customer's requirements.

Dimensions:

(Unit=mm)


Wiring Diagram:

Matched Drivers:

3 Phase stepper motor driver Model: JK3DM860

NEMA42 110mm 3 Phase Stepper motor 1.2°

NEMA42 110mm 3 Phase Stepper motor 1.2°

NEMA42 110mm 3 Phase Stepper motor 1.2°

Model: NEMA42 Stepper motor-JK110H3P (1.2 degree)

Genaral Specification:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 220N
Max. axial force ---------------------------- 60N

Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

Rotoer inertia

Leads

Motor

Length

( °)

(L)mm

A

Ω

mH

N.m

g.cm

Kg

JK110H3P134-3003

1.2

134

3

3.15

17

8

9750

3

7.8

JK110H3P162-3003

1.2

162

3

4.2

22

13

12100

3

8.3

JK110H3P194-5003

1.2

194

5

2.14

17.5

16

15300

3

10.5

JK110H3P233-5003

1.2

233

5

1.93

23

20

18600

3

12.6

JK110H3P253-5003

1.2

253

5

2.4

24.4

22

21000

3

13.1

JK110H3P285-5003

1.2

285

5

2.9

27

25

24300

3

14.8

Note: We can also manufacture products according to customer's requirements.

Dimensions:

(Unit=mm)

Wiring Diagram:

Matched Drivers:

3 Phase stepper motor driver Model: JK3DM2207

NEMA52 130mm 3 Phase Stepper motor 1.2°

NEMA52 130mm 3 Phase Stepper motor 1.2°

NEMA52 130mm 3 Phase Stepper motor 1.2°

Model: NEMA52 Stepper motor-JK130H3P (1.2 degree)

Genaral Specification:

Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 220N
Max. axial force ---------------------------- 60N

Electrical Specification:

Model No.

Operating Voltage

Rated Current

Resistance

Inductance

Holding Torque

Noload Frequency

Starting Frequency

Weight

Length

VDC

A

Ω

mH

N.m

No.

g.cm

kg

mm

JK130H3P173

80~325

5

0.68

9.2

25

20000

2600

13.3

173

JK130H3P229

80~325

5

0.94

14.8

30

20000

2500

17.8

229

JK130H3P257

80~325

3

1.71

23.6

40

18000

2500

20

257

JK130H3P285

80~325

6

1.18

19.4

50

18000

2500

22.5

285

Note: We can also manufacture products according to customer's requirements.

Dimensions:(Unit=mm)

Dimensions:

(Unit=mm)

3 Phase stepper motor driver Model: JK3DM2207

42HS40 NEMA17

42HS40 NEMA17

42HS40 NEMA17

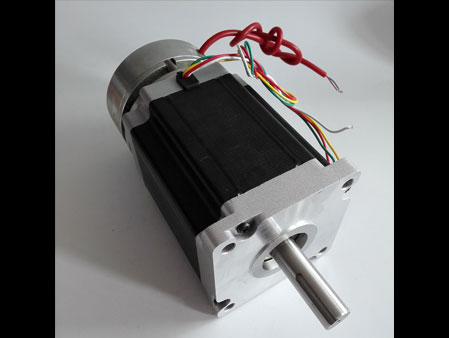

FRENLİ STEP MOTOR

FRENLİ STEP MOTOR

FRENLİ STEP MOTOR



Teknik Şemalar



JK110HS201-8004

JK110HS201-8004

JK130H250-7004

JK130H250-7004

JK28HS32-0674

JK28HS32-0674

JK39HY34-0404

JK39HY34-0404

JK42HS34-1334

JK42HS34-1334

JK42HS40-1704

JK42HS40-1704

JK42HS48-1684-01

JK42HS48-1684-01

JK57HS41-2804

JK57HS41-2804

JK57HS51-2804-03

JK57HS51-2804-03

JK57HS56-2804-03

JK57HS56-2804-03

JK57HS76-2804-03

JK57HS76-2804-03

JK57HS76-2804

JK57HS76-2804

JK57HS82-3004

JK57HS82-3004

JK60HS100-4004F

JK60HS100-4004F

JK60HS88-3008

JK60HS88-3008

JK86HS115-6004

JK86HS115-6004

JK86HS155-6004

JK86HS155-6004

JK86HS68-5904

JK86HS68-5904

JK86HS78-5504-01

JK86HS78-5504-01
